Heat Slinger/Cooling Wheel

Heat Slinger/Cooling Wheel

Heat Slingers are used to dissipate heat in high-heat applications. Heat Slingers are fixed to a unit’s shaft.

Other names for this product are Cooling Disks, Shaft Coolers, Heat Flingers, Cooling Wheels, and Heat Shields.



Category:

Description

Click on the image to enlarge.

* Inches
** Pounds

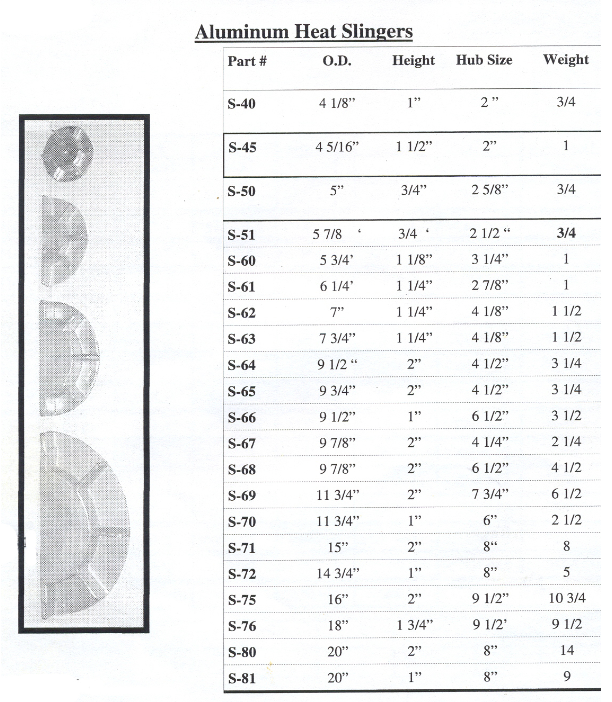

Part #
Outside Diameter*
Height*
Hub Size*
Max Bore*
Weight**

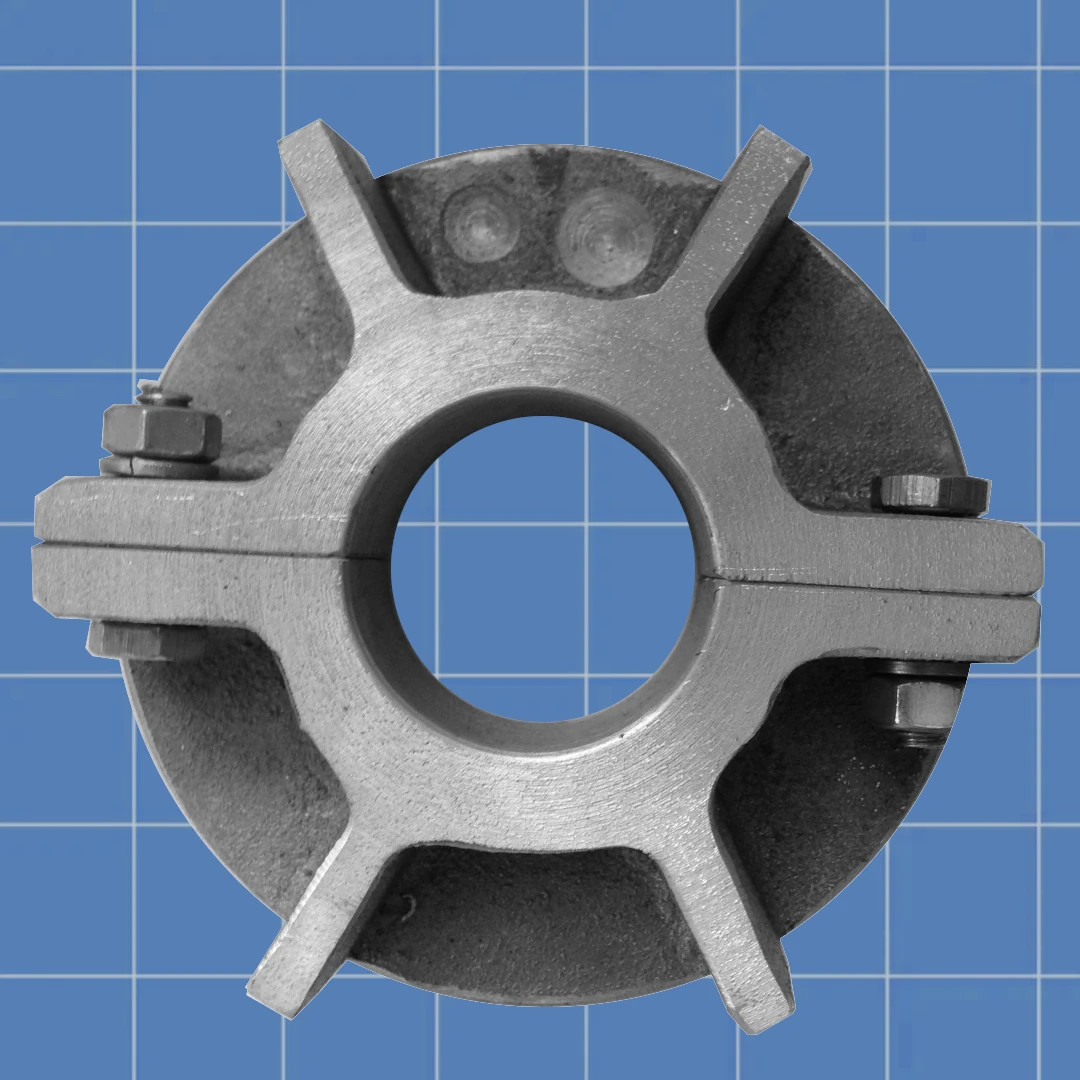

S-40 4-1/8 1 2 1-1/4 3/4

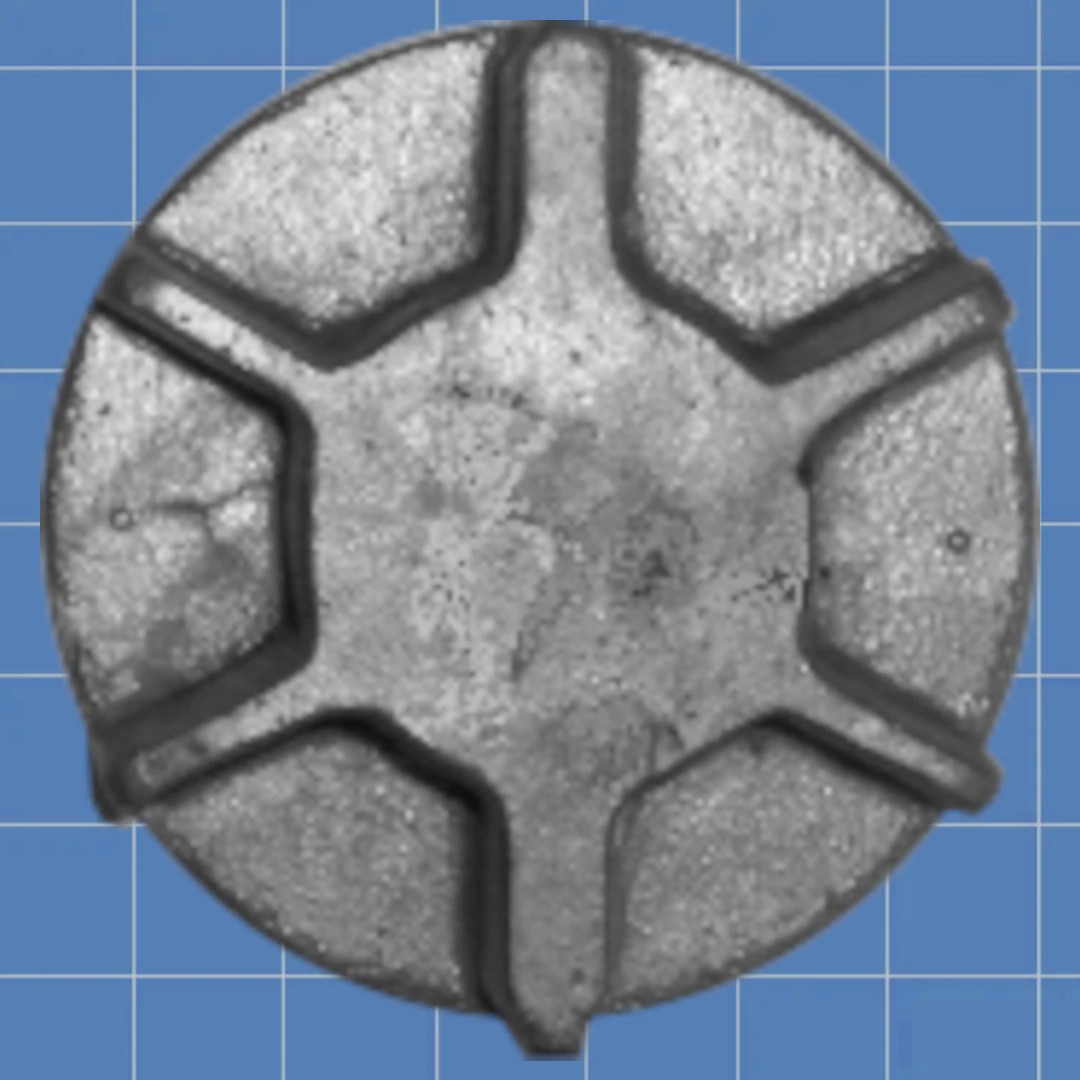

S-45 4-5/16 1-1/2 2 1-1/4 1

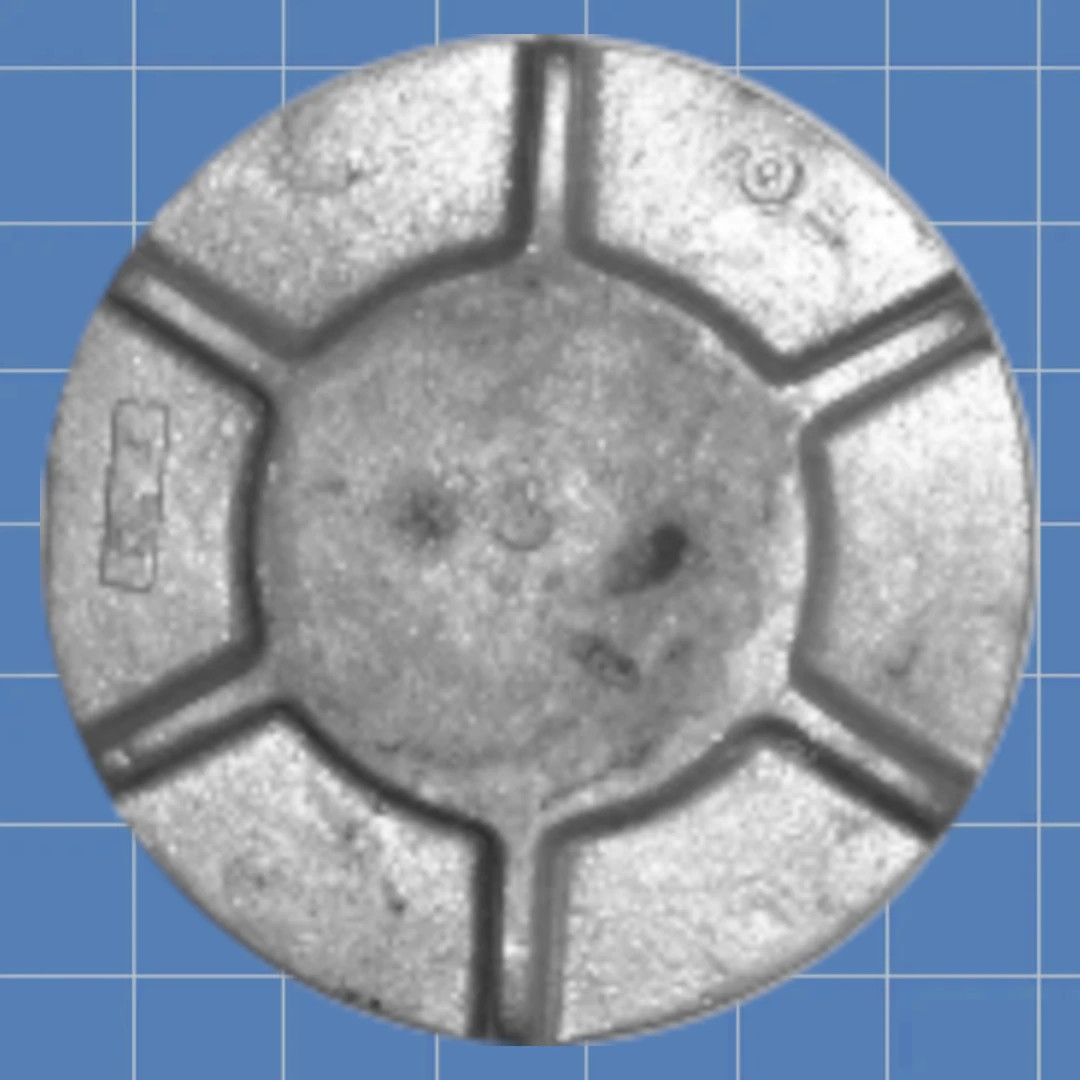

S-50 5 3/4 2-5/8 1-7/8 3/4

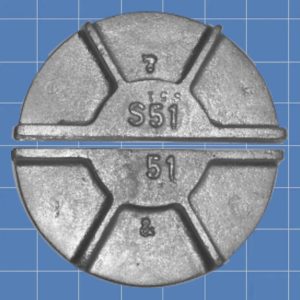

S-51 4-7/8 3/4 2-1/2 1-3/4 3/4

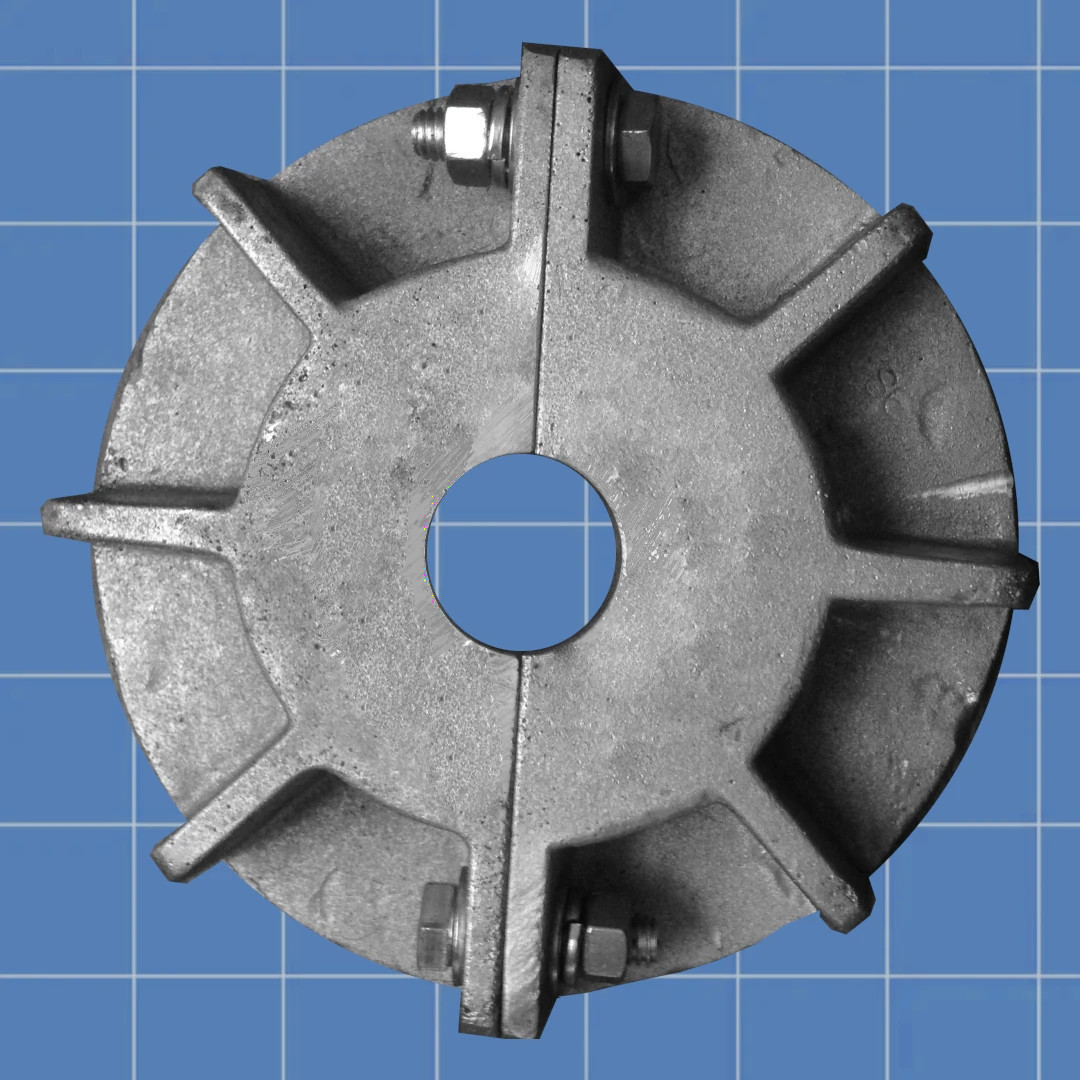

S-60 5-3/4 1-1/8 3-1/4 2-1/2 1

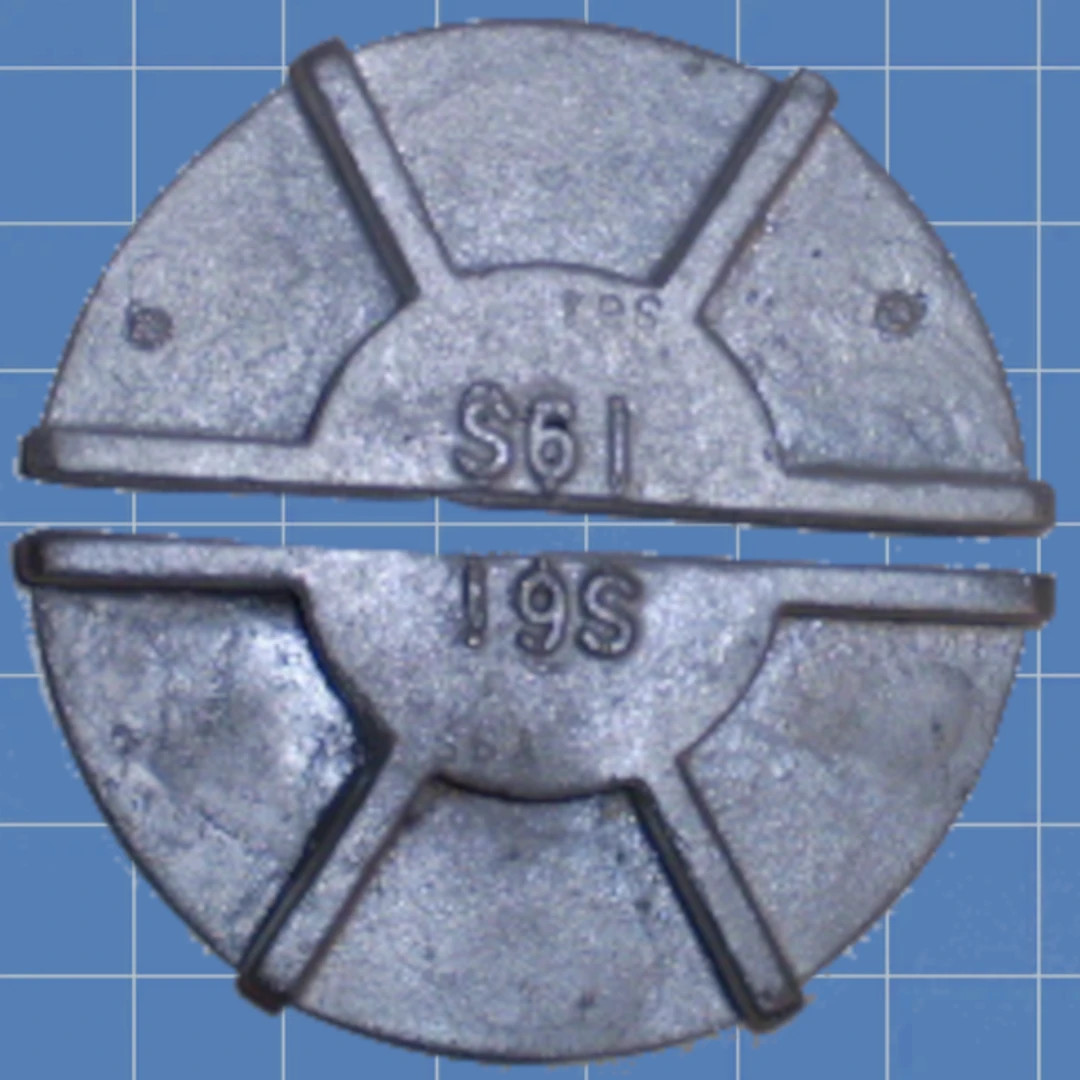

S-61 6-1/4 1-1/4 2-7/8 1-5/8 1

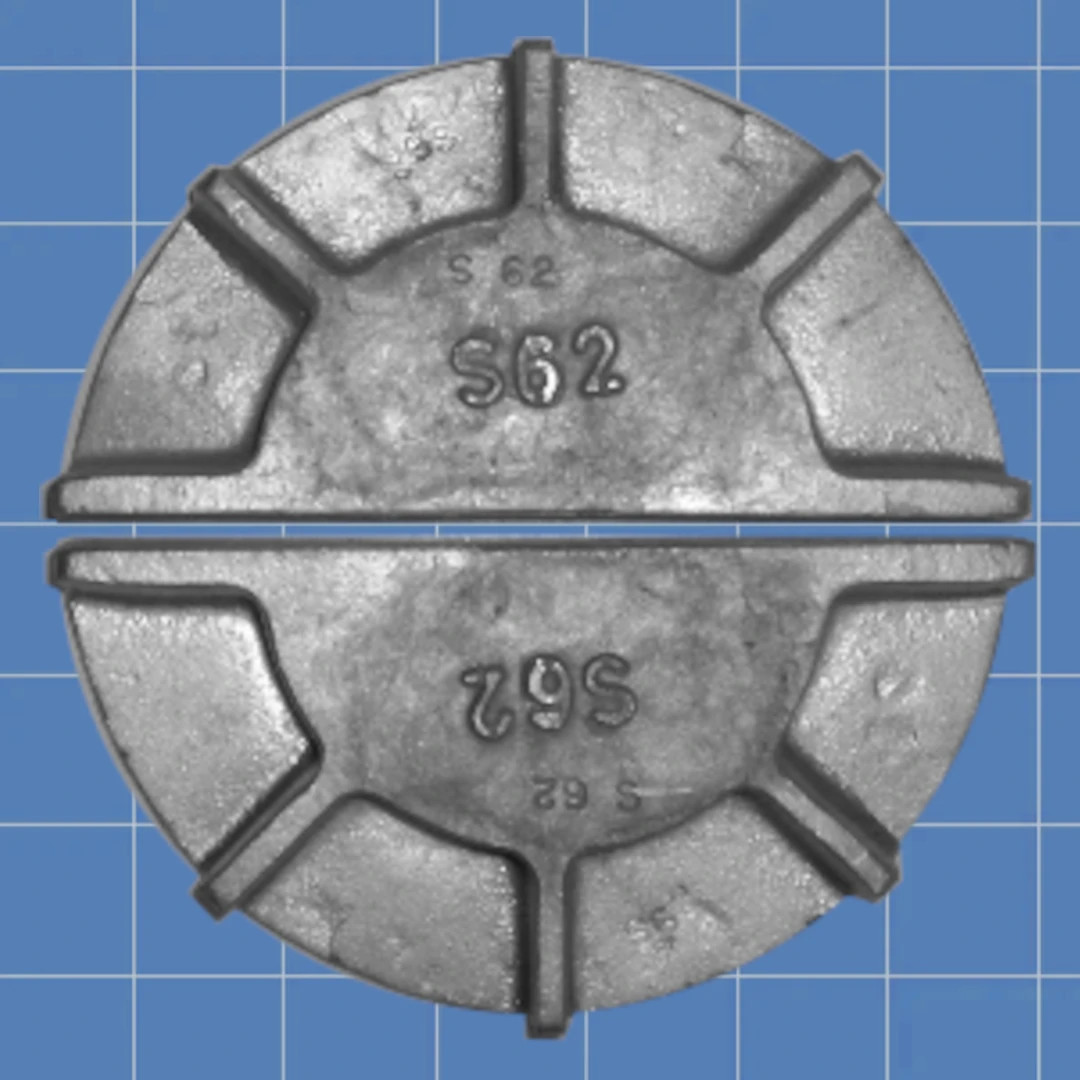

S-62 7 1-1/4 4-1/8 2-7/8 1-1/2

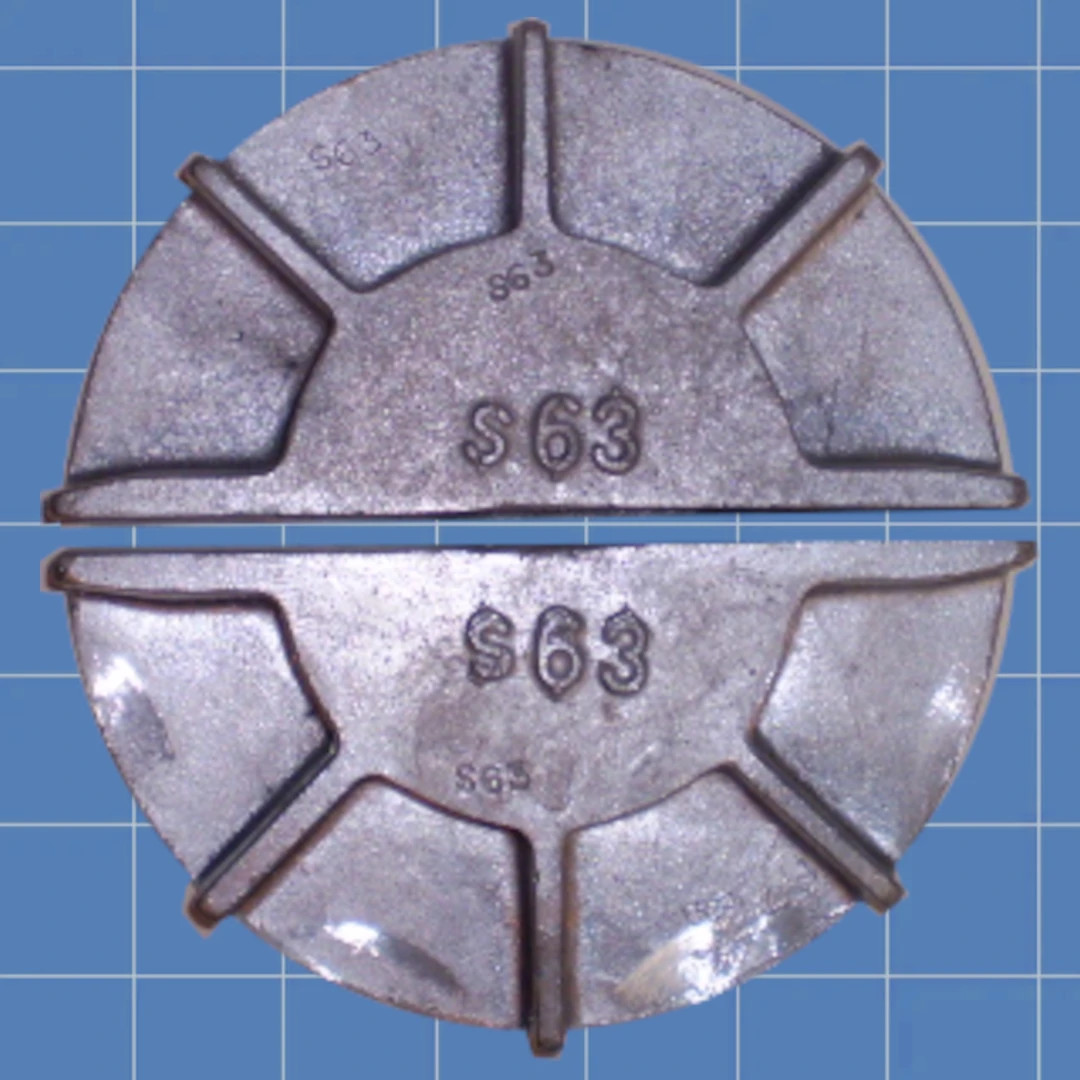

S-63 7-3/4 1-1/4 4-1/8 2-7/8 1-1/2

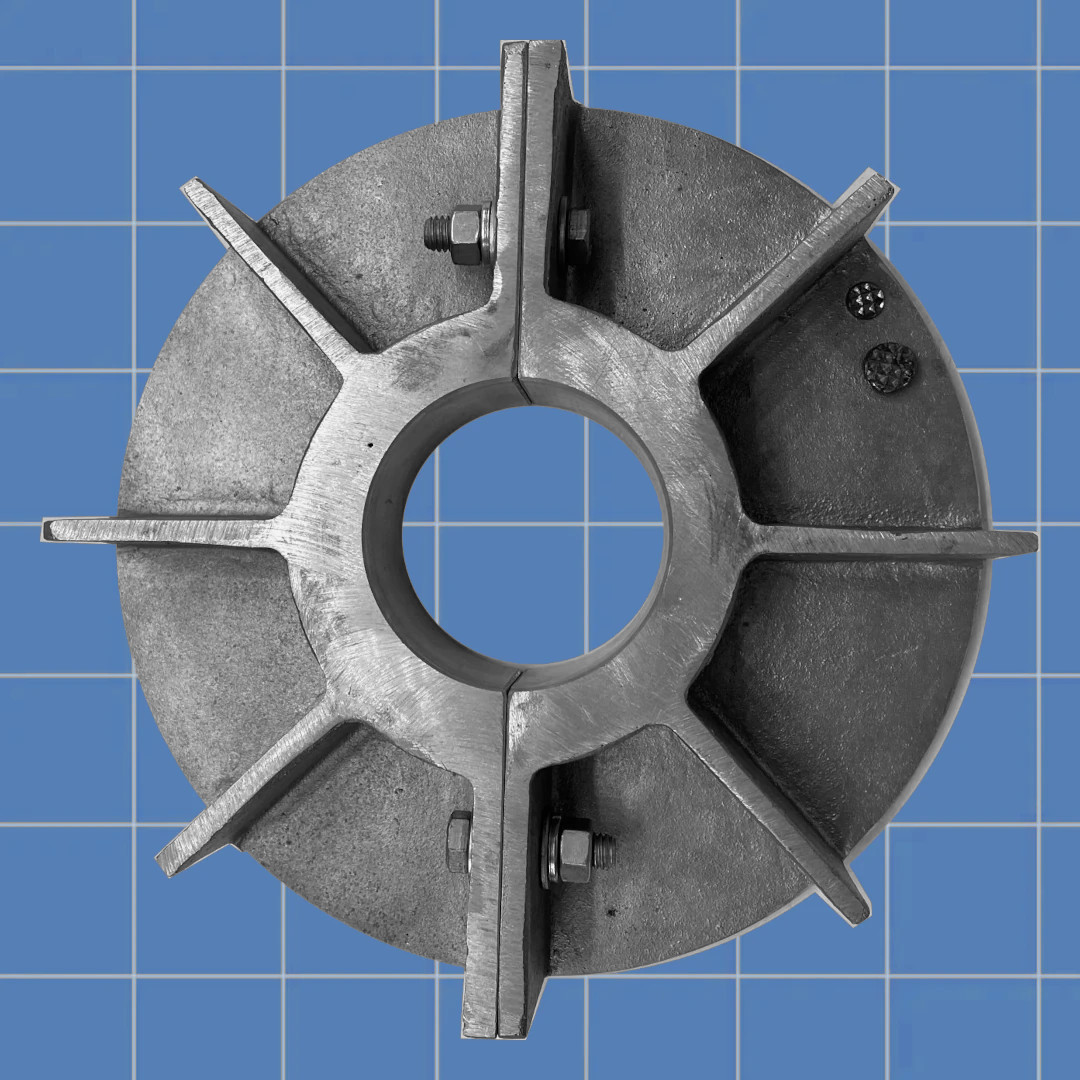

S-64 9-1/2 2 4-1/2 3-1/4 3-1/4

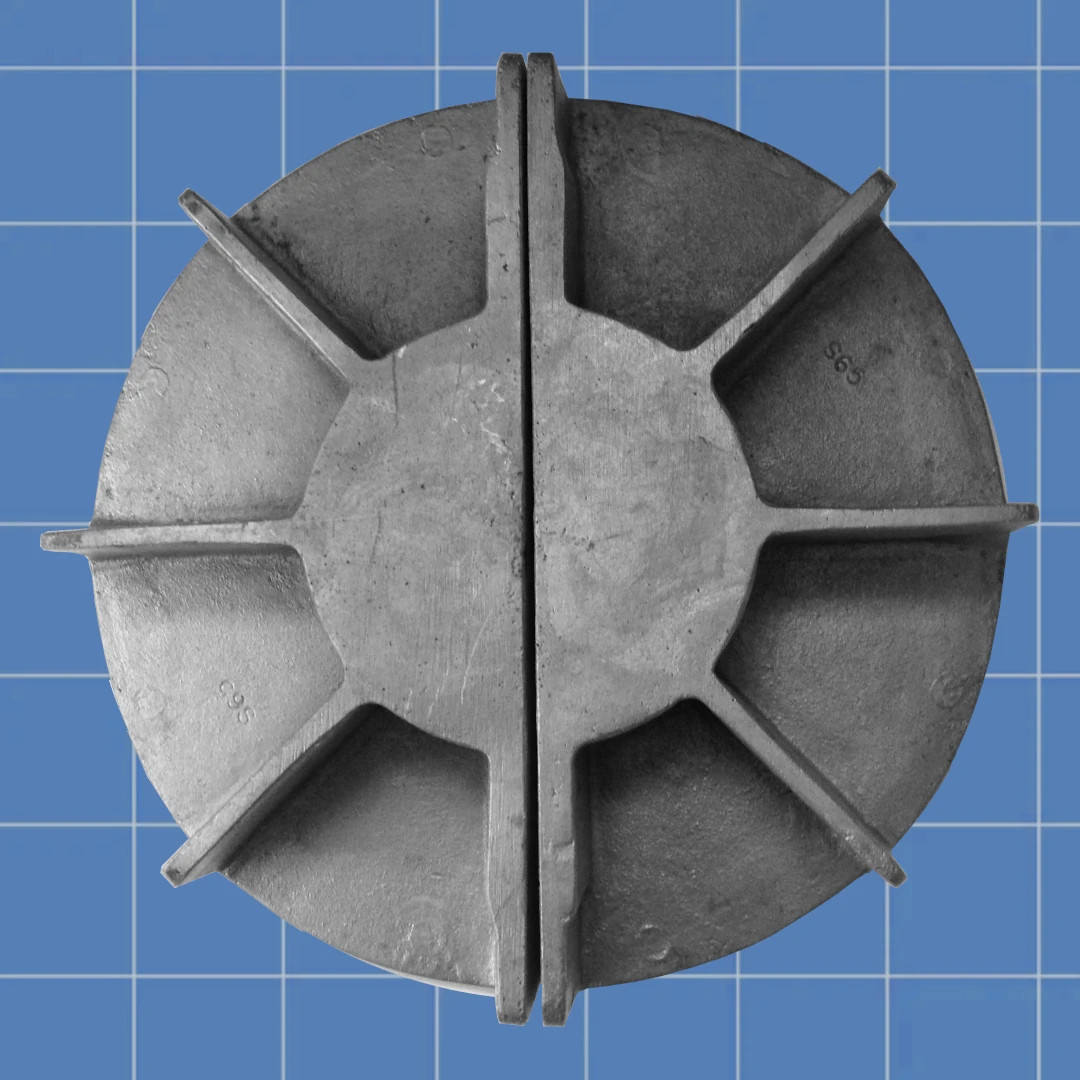

S-65 9-3/4 2 4-1/2 3-1/4 3-1/4

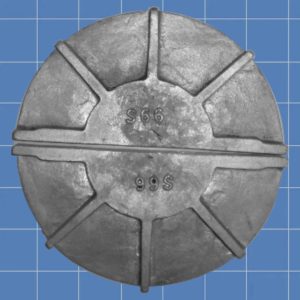

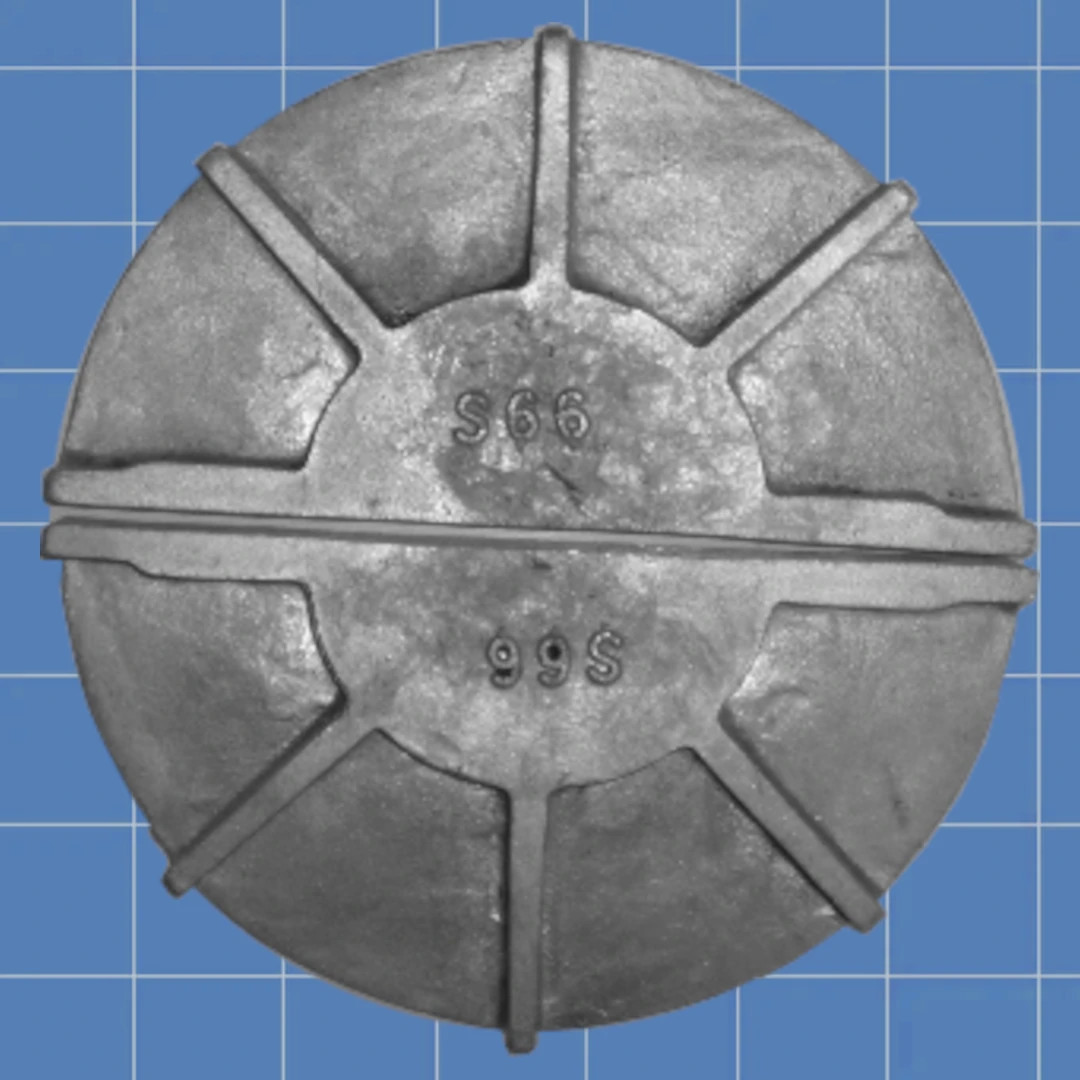

S-66 9-1/2 1 6-1/2 5-1/4 3-1/2

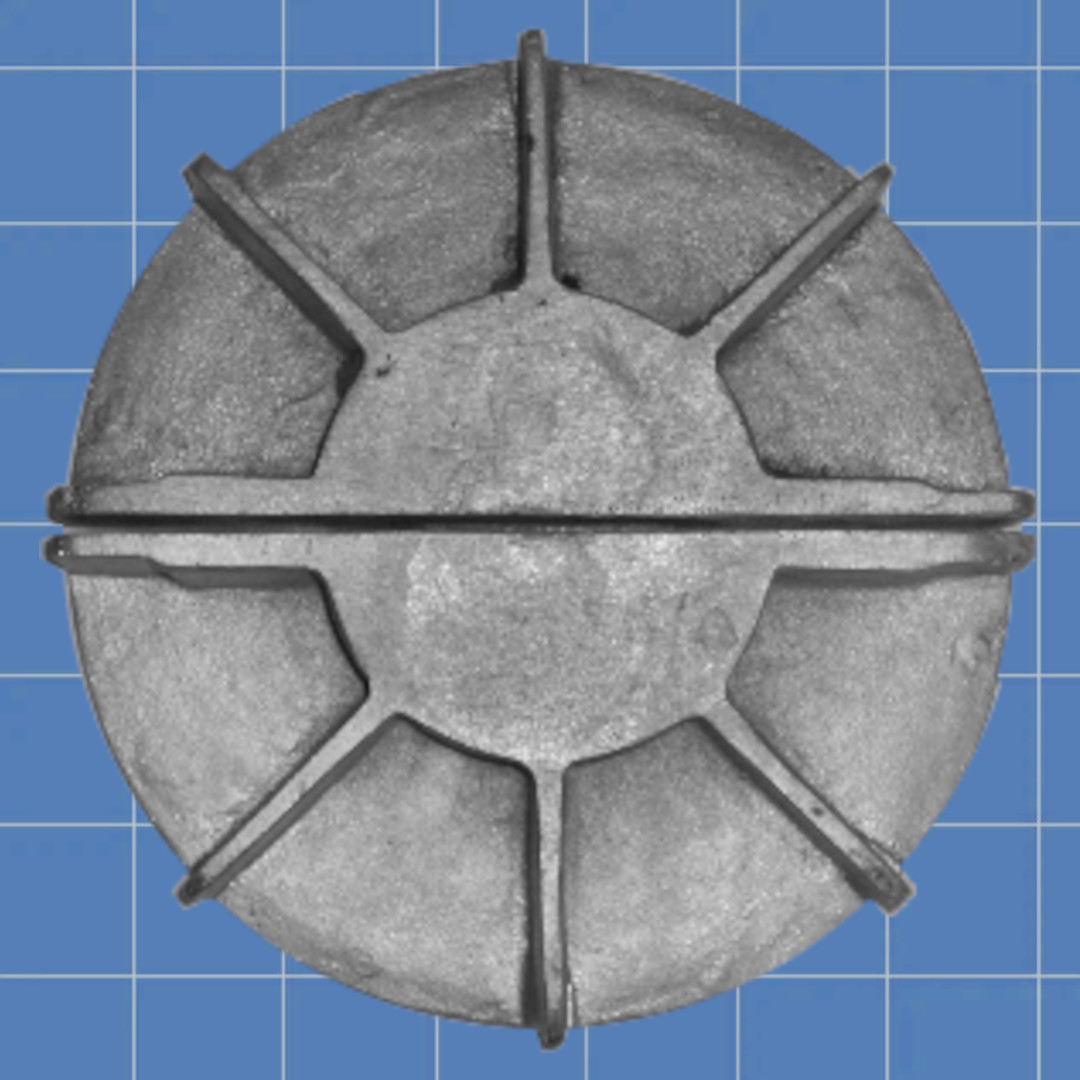

S-67 9-7/8 2 4-1/4 3 2-1/4

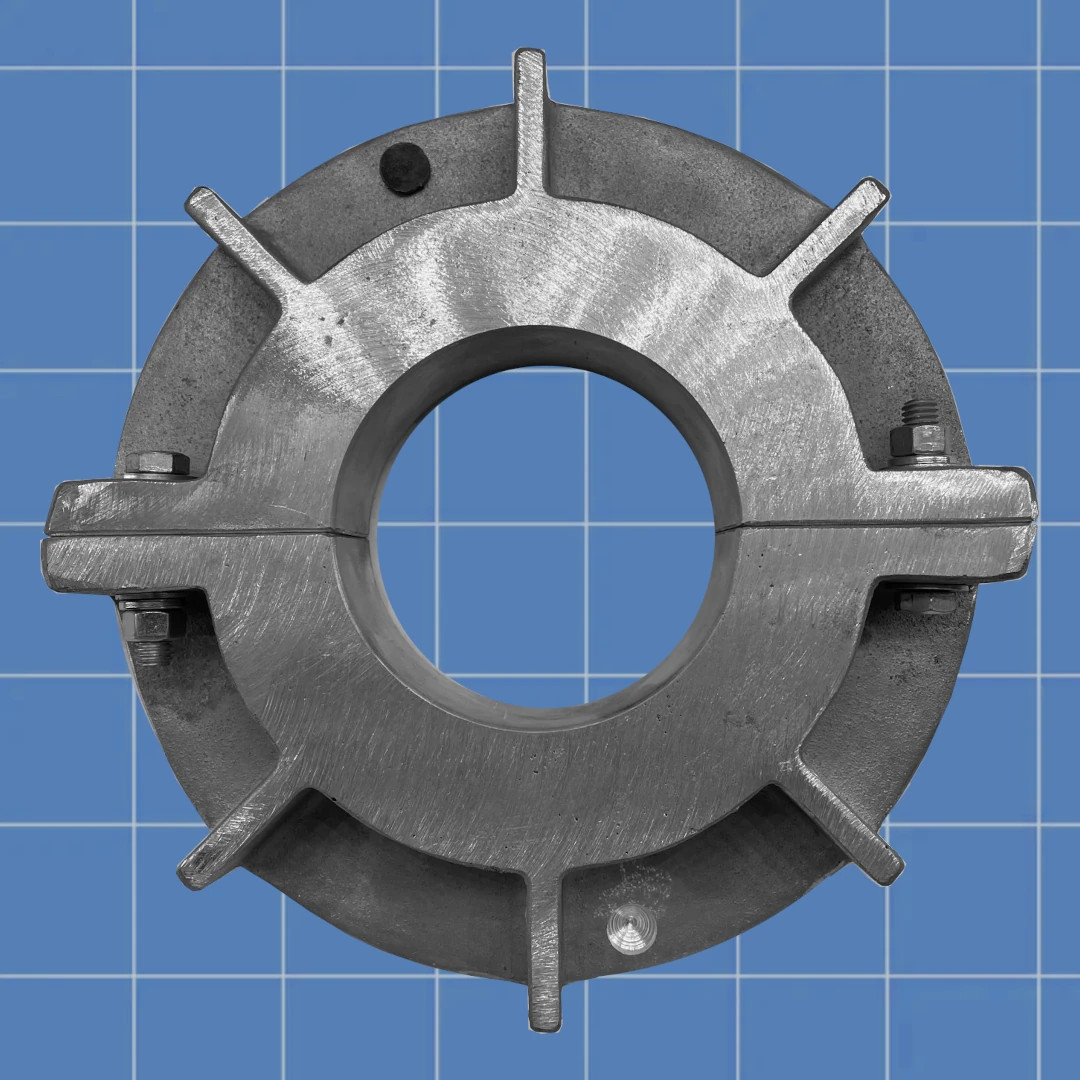

S-68 9-7/8 2 6-1/2 5-1/4 4-1/2

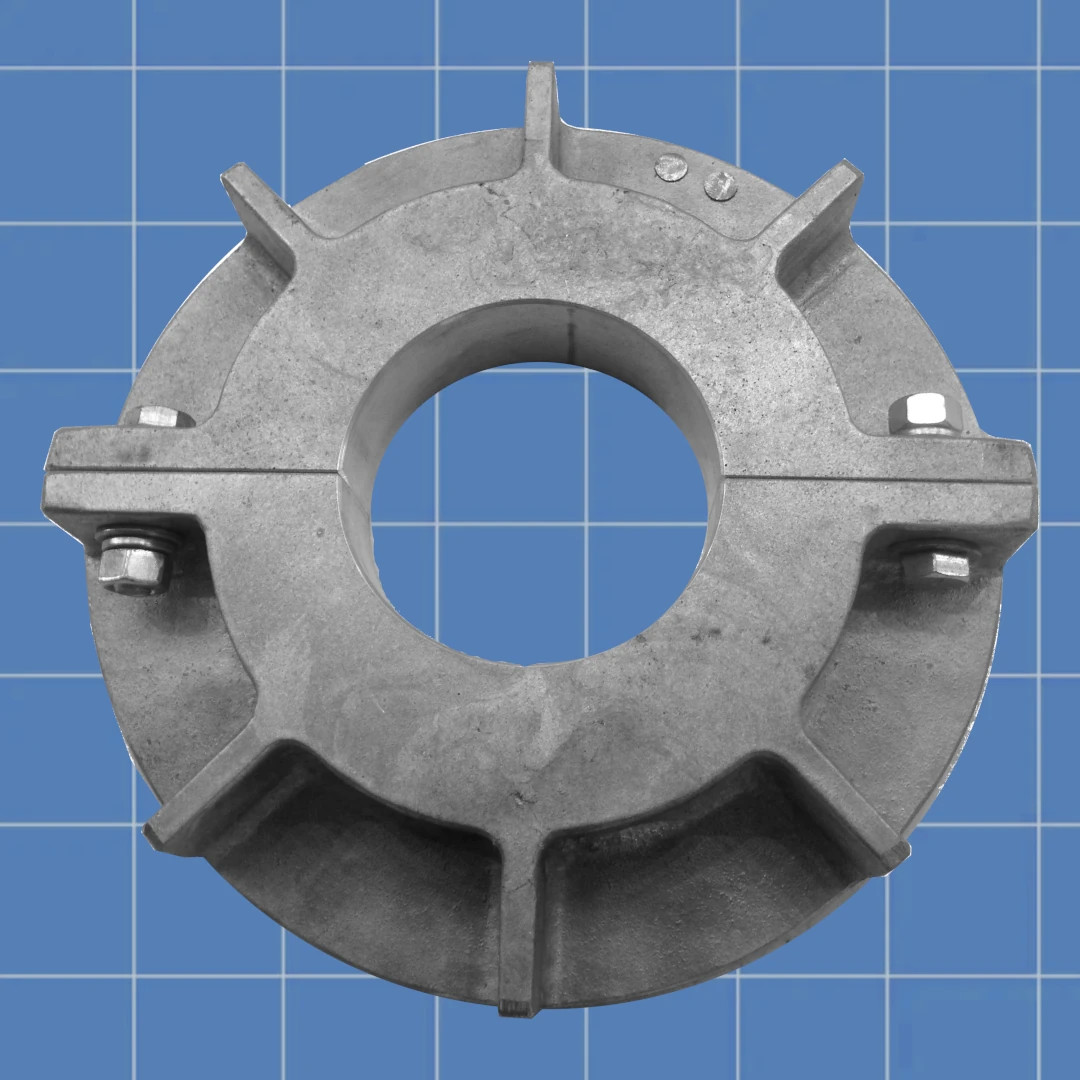

S-69 11-3/4 2 7-3/4 6-1/2 6-1/2

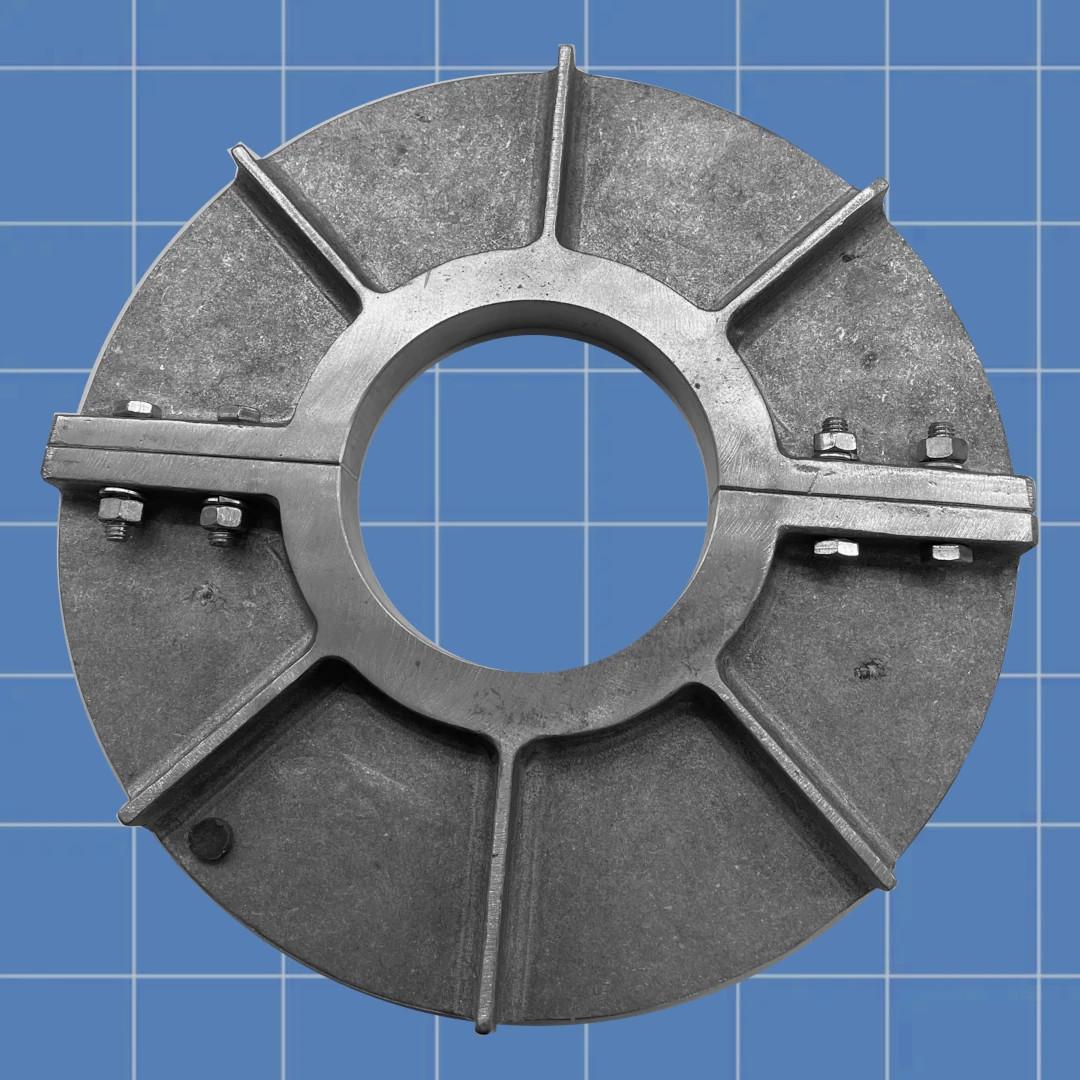

S-70 11-3/4 1 6 4-3/4 2-1/2

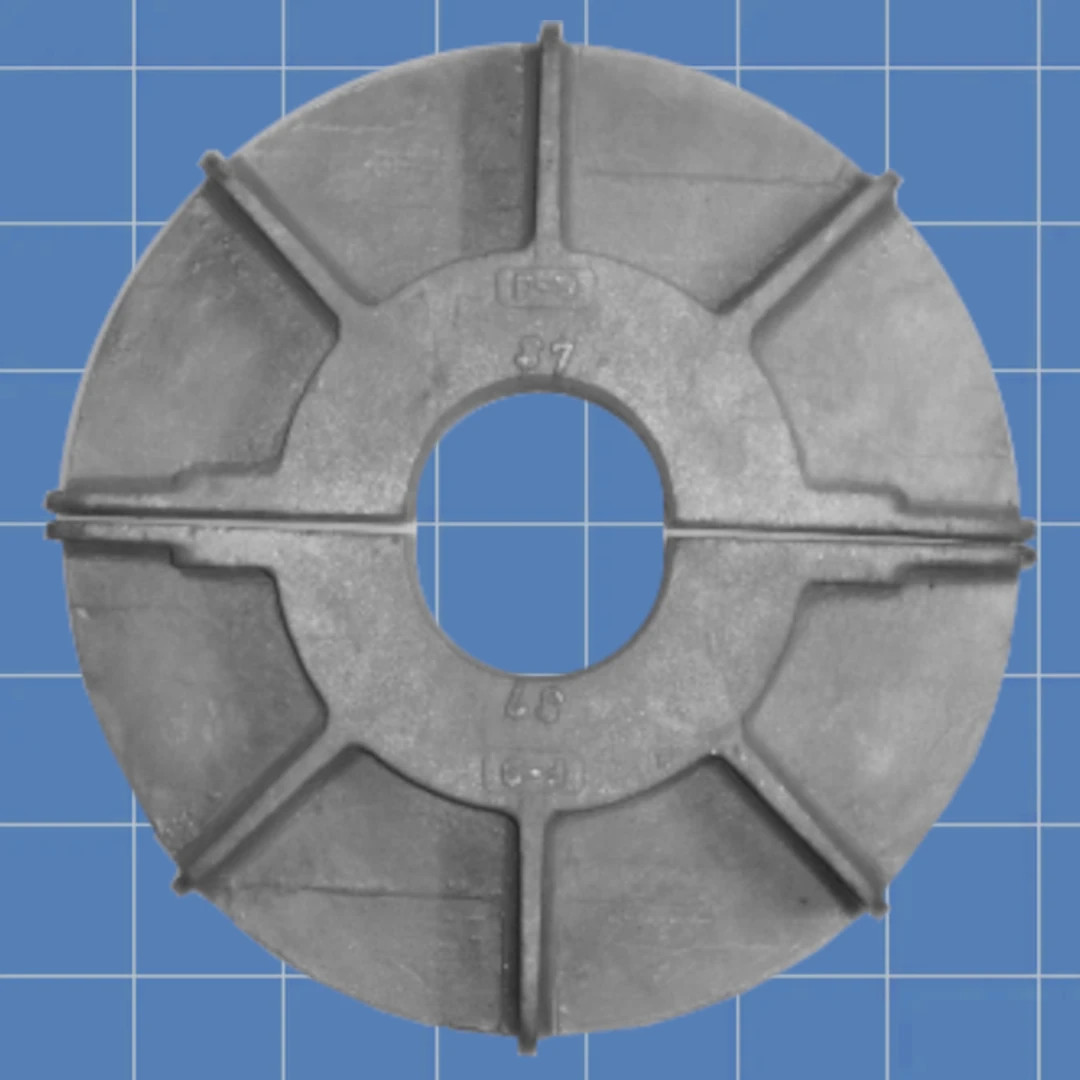

S-71 15 2 8 6 8

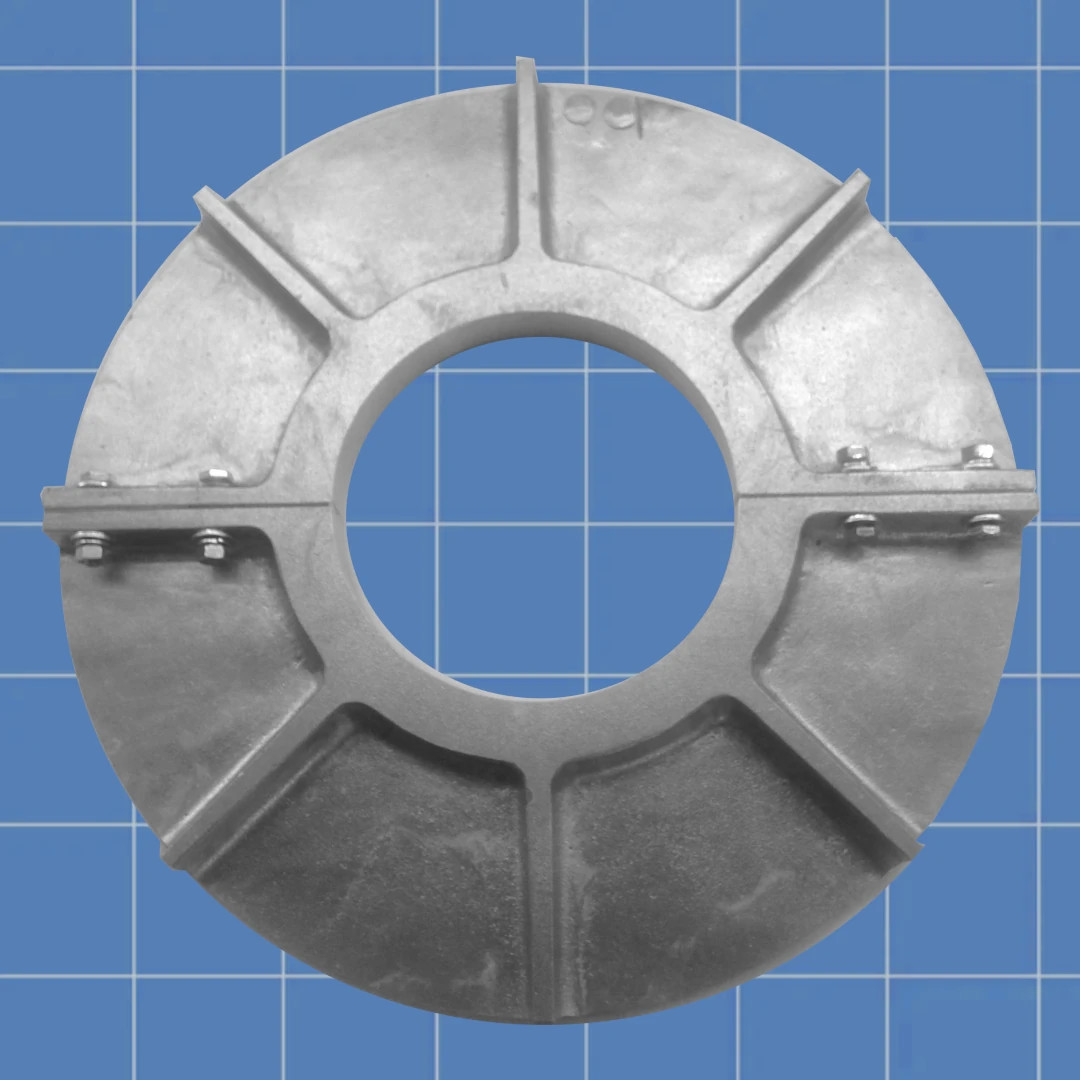

S-72 14-3/4 1 8 6 5

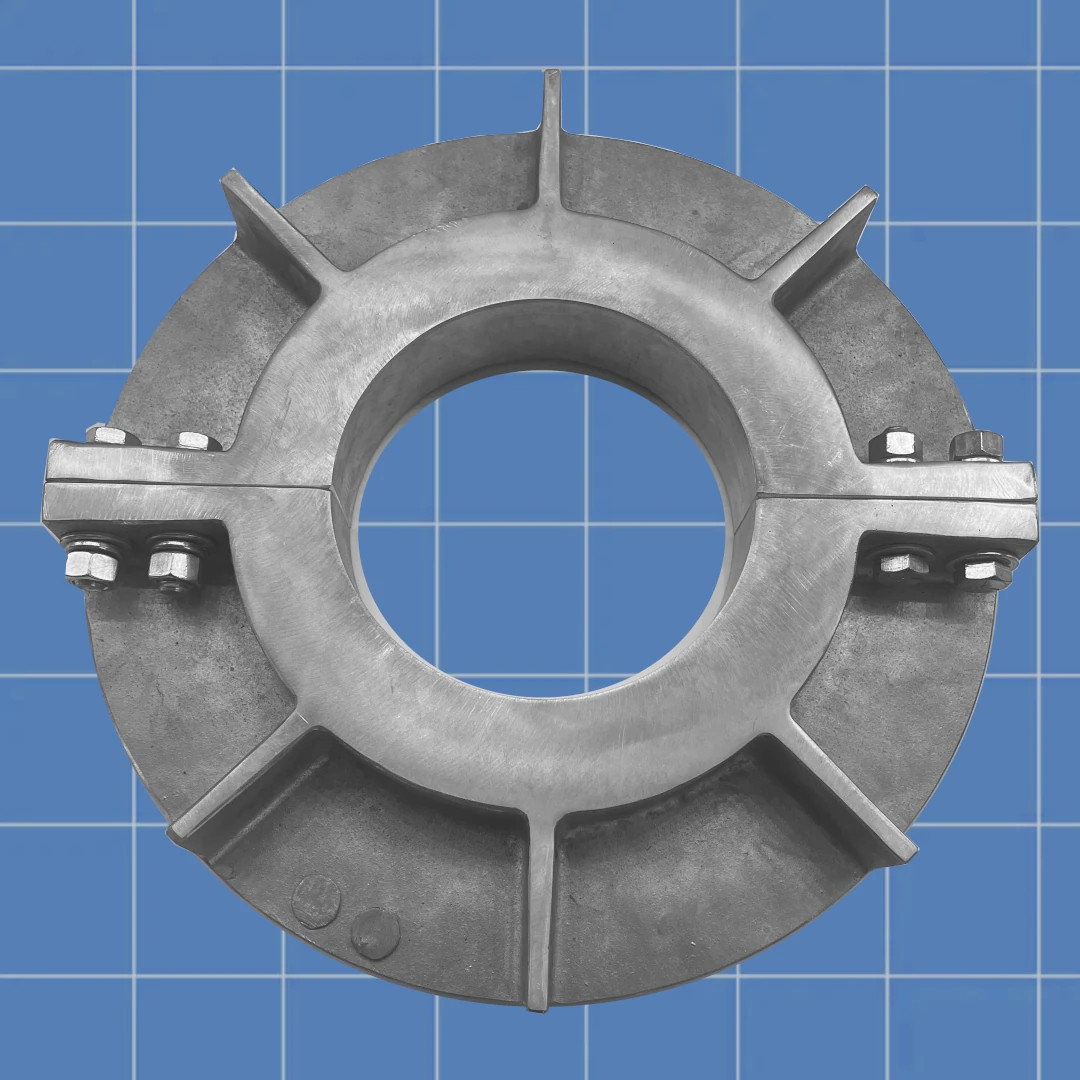

S-75 16 2 9-1/2 7-1/2 10-3/4

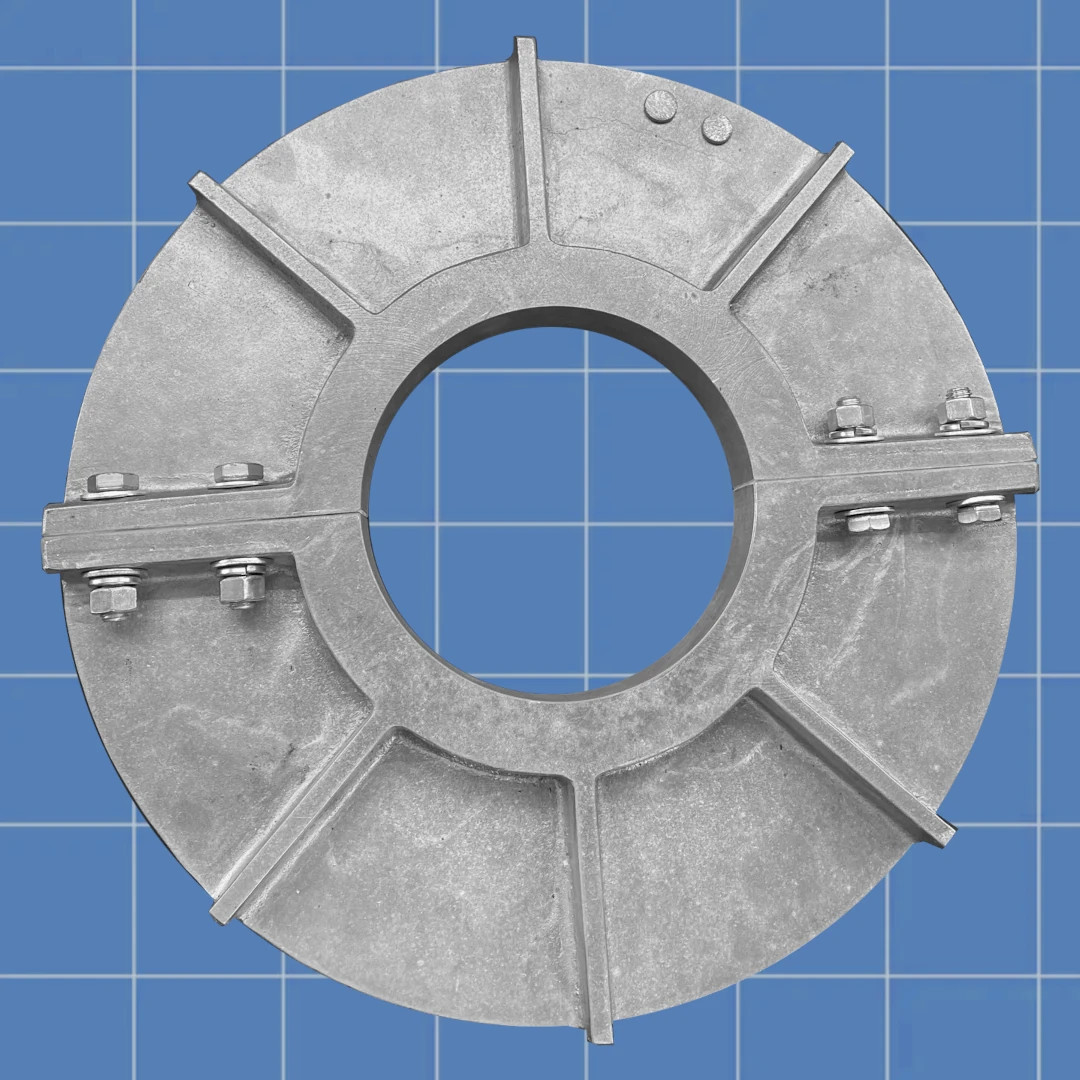

S-76 18 1-3/4 9-1/2 7-1/2 9-1/2

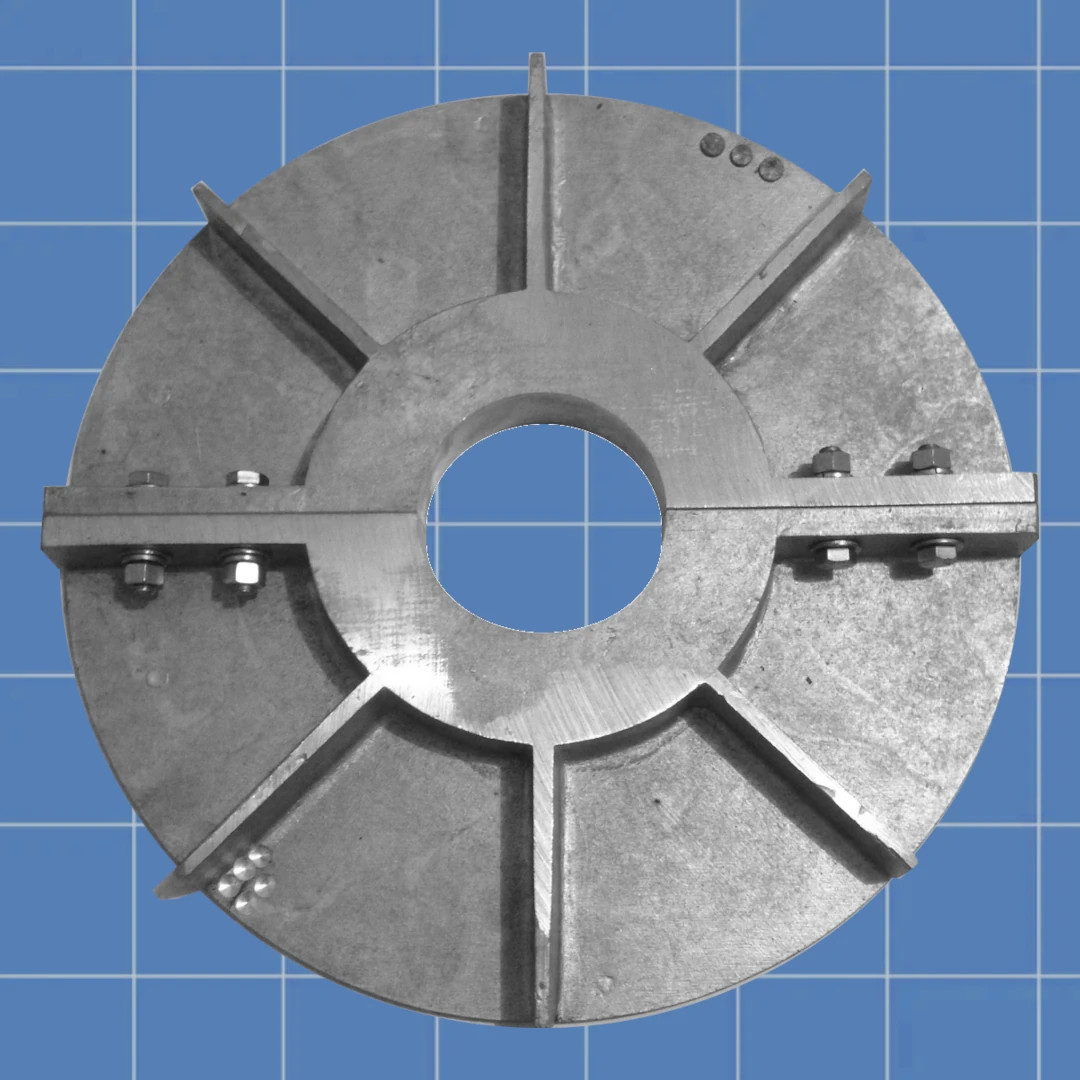

S-80 20 2 8 6 14
